MACK BATH H

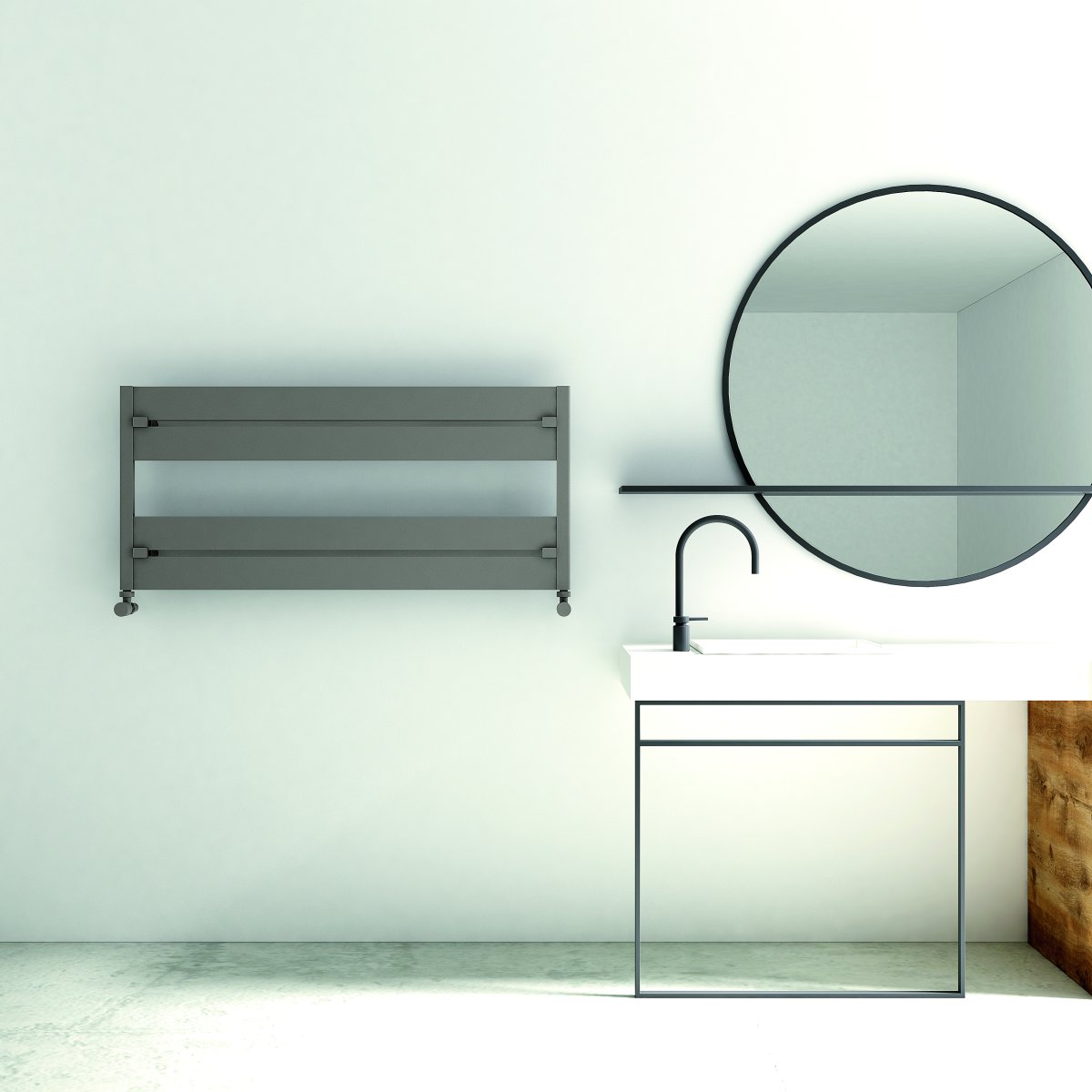

100431MACK BATH H — Aluminium towel rail. Modern bathroom design, AluRapid thermal response.
Technical Specifications
| Product Code | Height (mm) | Width (mm) | Sections | Pipe Centres (mm) | Wall-to-Centre (mm) | Wall Projection (mm) | Weight (kg) | Volume (L) | Fuel Type | Watt ΔT50 | BTU ΔT50 | BTU ΔT70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15MBH0505150004 | 505 | 1500 | 4 | 1475 | 79-99 | 93-113 | 7.8 | 0.9 | C | 668 | 2276 | 3502 |
| 15MBH0505180004 | 505 | 1800 | 4 | 1775 | 79-99 | 93-113 | 12.0 | 1.3 | C | 801 | 2733 | 4205 |
- Material: Aluminium 6063-T5
- Max Working Pressure: 10 bar
- Connections: 1/2" BSP
- Guarantee: 10 years
