ZARA

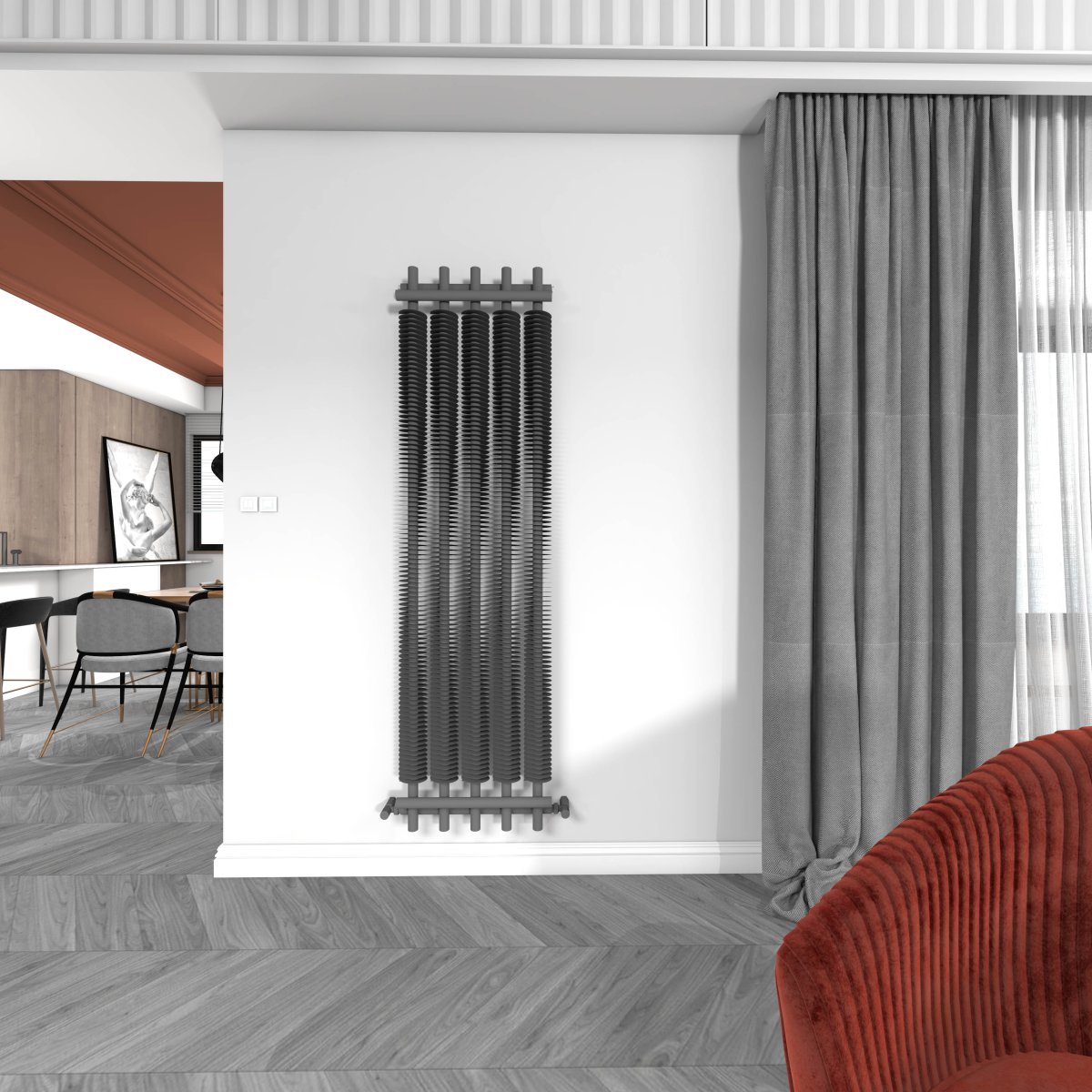

100537ZARA is a steel design radiator model in the Red Hot Collection. Ideal for vertical / horizontal space solutions.
Technical Specifications
| Product Code | Height (mm) | Width (mm) | Sections | Pipe Centres (mm) | Wall-to-Centre (mm) | Wall Projection (mm) | Weight (kg) | Volume (L) | Fuel Type | Watt ΔT50 | BTU ΔT50 | BTU ΔT70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12ZAR1800026005 | 1800 | 260 | 5 | 350 | 25-45 | 80-100 | 9.7 | 6.9 | C | 702 | 2392 | 3681 |
| 12ZAR1800036007 | 1800 | 360 | 7 | 450 | 25-45 | 80-100 | 12.0 | 9.7 | C | 982 | 3349 | 5153 |
| 12ZAR0550102516 | 550 | 1025 | 16 | 1115 | 25-45 | 80-100 | 12.0 | 7.4 | C | 686 | 2341 | 3601 |
- Material: Steel DC01
- Max Working Pressure: 10 bar
- Connections: 1/2" BSP
- Guarantee: 5 years
