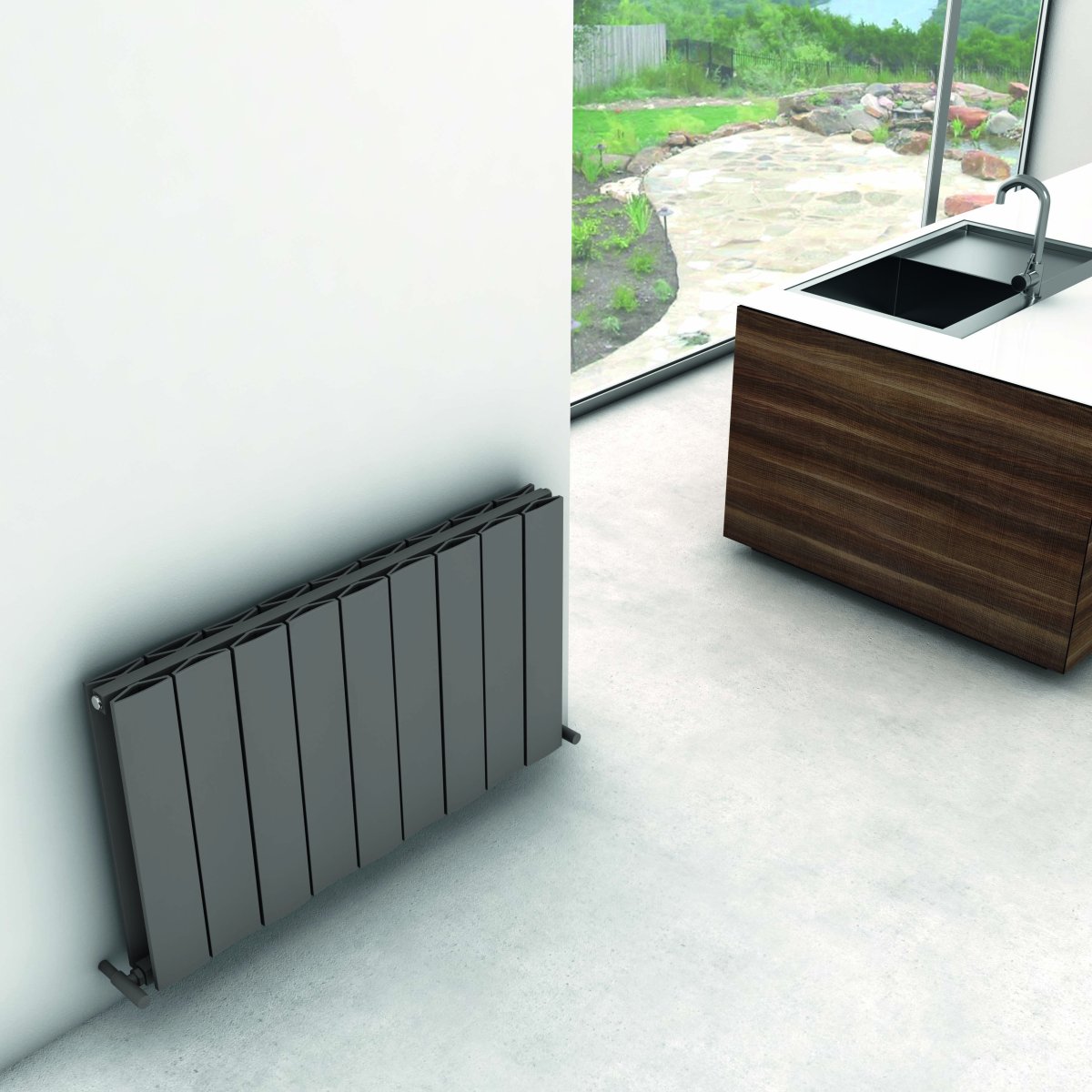

TALLIS XL
100404TALLIS XL — Aluminium design radiator. Heat pump compatible, AluRapid thermal response, low water volume.
Technical Specifications
| Product Code | Height (mm) | Width (mm) | Sections | Pipe Centres (mm) | Wall-to-Centre (mm) | Wall Projection (mm) | Weight (kg) | Volume (L) | Fuel Type | Watt ΔT50 | BTU ΔT50 | BTU ΔT70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10TXL0350180006 | 350 | 1800 | 6 | 1768 | 55 | 99 | 9,1 | 3,6 | C | 743 | 2533 | 3898 |
| 10TXL0590180010 | 590 | 1800 | 10 | 1768 | 55 | 99 | 15,1 | 6,0 | C | 1238 | 4222 | 6496 |
- Material: Aluminium
- Max Working Pressure: 10 bar
- Max Working Temperature: 95°C
- Connections: 1/2"
- Section Depth: 51 mm
- Guarantee: 10 years
